Structural Ceramics Good Insulation Engineering Zirconia Ceramics Tube ZrO Ceramic Insert

Shengda Ceramic provide all kinds of alumina ceramic part. Also can supply the mirror surface treatment to meet the sealing requirements of bearings, etc. Any dimension requirement, please contact us.

Product Introduction

High-Performance Zirconia Ceramic Tubes for Demanding Industrial Applications

Our precision-engineered Zirconia Ceramic Tubes (ZrO₂) combine exceptional structural integrity with superior electrical insulation, making them ideal for extreme environments. Manufactured using advanced stabilization technology, these structural ceramics deliver unmatched mechanical properties where traditional materials fail.

Industrial Applications Showcase:

1. High-Temperature Sensor Protection (Automotive/Aerospace)
Our Zirconia Ceramic Tubes serve as critical shielding components for:

Oxygen sensors in combustion engines

Thermocouple sheaths in jet turbines

Exhaust gas analysis probes

Case Study: A Tier 1 automotive supplier reduced sensor failure rates by 68% after switching to our ceramic tubes in turbocharger monitoring systems.

2. Semiconductor Processing Equipment

Plasma etching chamber liners

Wafer handling arms

CVD reactor insulators

Performance Advantage: Withstand 1000+ thermal cycles in 14nm chip fabrication, maintaining dimensional stability within ±5μm.

3. Medical Implant Testing

Wear simulation sleeves for hip/knee joint prototypes

Corrosion-resistant fluid channels in test rigs

4. Energy Sector Solutions

Solid oxide fuel cell (SOFC) interconnects

Insulating bushings for high-voltage transformers

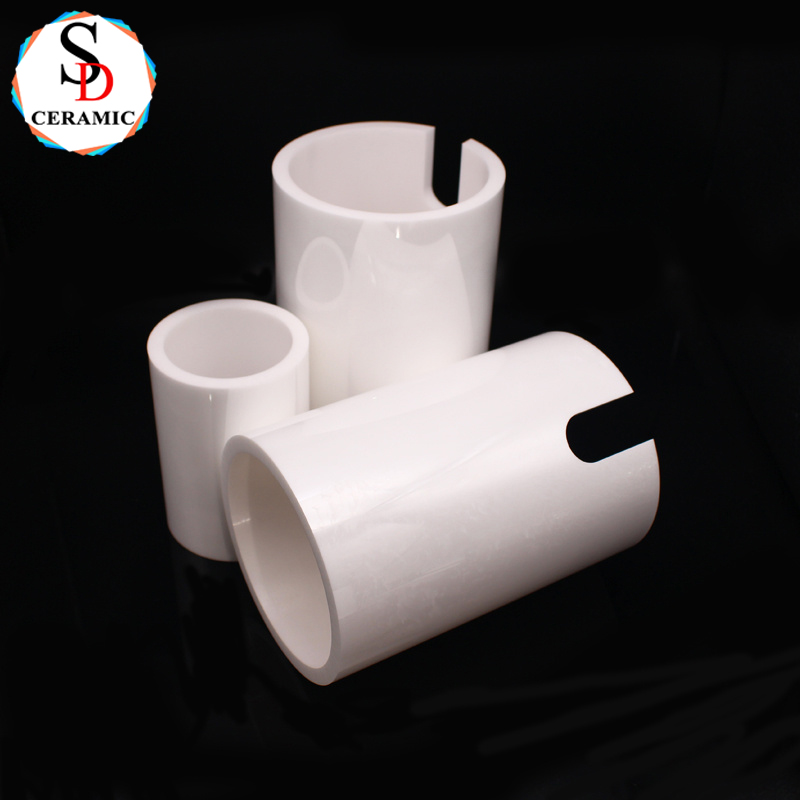

High Hardness Structural Ceramics Good Insulation Engineering Zirconia Ceramics Tube ZrO Ceramic Insert

High Hardness Structural Ceramics Good Insulation Engineering Zirconia Ceramics Tube ZrO Ceramic Insert


Why Choose Our ZrO₂ Ceramic Tubes?

Superior Crack Resistance: Tetragonal phase transformation toughening mechanism

Customization: Available in OD 2-150mm, wall thickness 0.5-20mm

Post-Processing: Laser drilling, threading, and metallization capabilities

Comparative Advantage Table

FAQ Section
Q: Can these ceramic tubes be joined to metal components?
A: Yes, via active brazing or shrink-fitting with coefficient-matched alloys.

Q: What tolerances can be achieved?
A: Standard ±0.1%, high-precision ±0.02% with grinding.

Keywords Integration Strategy:

Primary: Zirconia Ceramic Tube (6 mentions)

Secondary: Structural Ceramics (3), Zirconia Ceramic (4), Ceramic Tube (3)

Semantic: High-temperature, insulation, industrial, precision (naturally incorporated)


Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926



Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Our customers

Wearable Alumina Ring Al2O3 Ceramic Ring Ceramic Insulation Ring


Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet


FAQ:

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)

High Temperature Alumina Ceramic Block Ring
