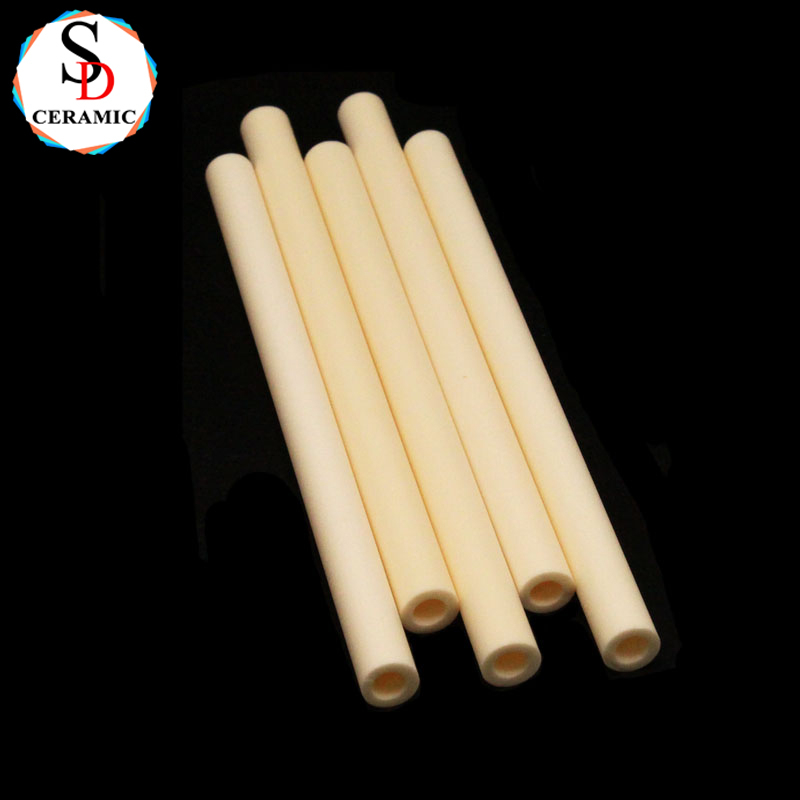

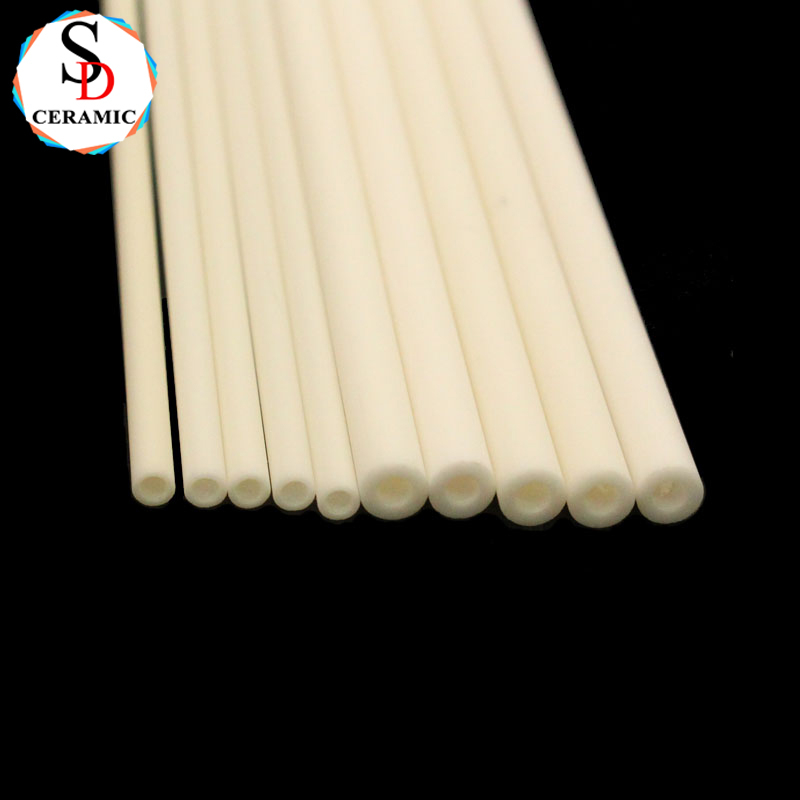

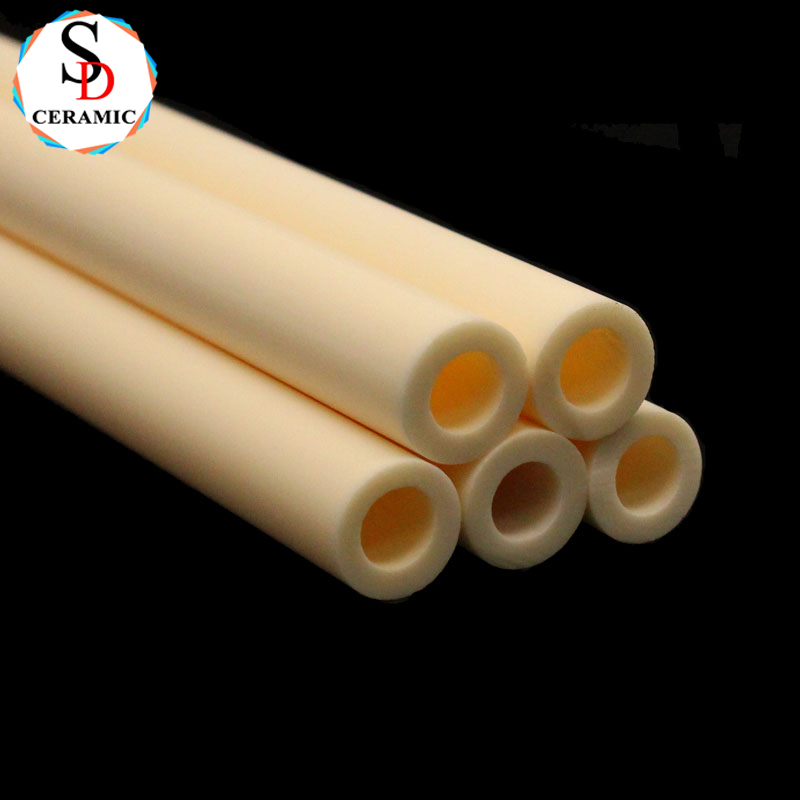

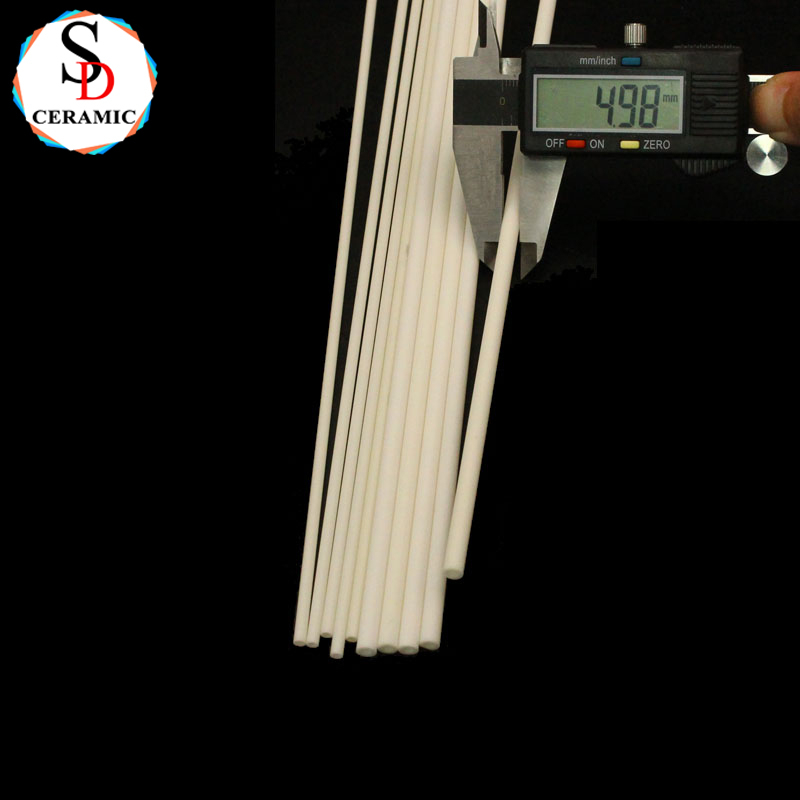

Customized Machining High Quality Ceramic Parts 99% Alumina Ceramic Tube Al2O3 Ceramic Pipe

Shengda Ceramic provide all kinds of alumina ceramic part. Also can supply the mirror surface treatment to meet the sealing requirements of bearings, etc. Any dimension requirement, please contact us.

Product Introduction

Precision-Crafted Alumina Ceramic Solutions for Industrial Excellence

Our Alumina Ceramic (Al₂O₃) components set the benchmark for high-performance industrial applications, offering exceptional wear resistance, electrical insulation, and thermal stability. As a leading manufacturer of customized ceramic tubing and precision parts, we deliver engineered solutions for the most demanding operational environments.

Industry-Proven Application Cases

1. Semiconductor Equipment Components
Problem: Plasma erosion in etch chambers causing particle contamination
Our Solution

99% alumina pipes for gas distribution manifolds

Custom ceramic shrouds with 0.05mm tolerance
Result: Extended maintenance cycles from 200 to 1500 hours at a 5nm fab


2. Thermal Processing Systems

Thermocouple protection sleeves (alumina ceramic pipes)

Roller guides for 1000°C furnace conveyors

Insulating washers for induction heating coils


3. Medical Device Manufacturing

Ceramic bearing sleeves for MRI-compatible pumps

Biocompatible alumina pipe assemblies for drug delivery systems


4. Energy & Power Generation

High-voltage insulators for substation equipment

Wear-resistant liners for coal slurry pipelines


Customized Machining High Quality Ceramic Parts 99% Alumina Ceramic Tube Al2O3 Ceramic Pipe

Customized Industrial Ceramic Manufacture 99% Alumina Ceramic Parts Al2o3 Ceramic Sheets

FAQ Section

Q: Can alumina ceramic tubes replace stainless steel in corrosive environments?
A: Yes - Our clients report 8-10x longer lifespan in HCl vapor applications at 80°C.


Ceramic Properties

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
99.5%Alumina Ceramic99.7%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowLight yellowLight yellowBlackWhite
Densityg/cm31.92.63.63.83.83.93.26
Flexural StrengthMpa301203003503753758001100
Compressive StrengthMPa350500250028002800255426003000
Modulus of Elasicity(20℃)Gpa40100300350350357290320
Max Use Temperature°C12001300140015001500176013001050
Thermal CondutivityW(m.K)1.3-1.82~620303033-38253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.588.28.2310
Thermal Shock Resistance△T℃300150140150200223600250
Dielectric StrengthKV/mm--15181823.41415
Dielectric ConstantEr8899.29.29.84926


Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate


Certifications

95 alumina substrate

Our customers

Wearable Alumina Ring Al2O3 Ceramic Ring Ceramic Insulation Ring


Packaging and shipping

95 alumina substrate

Transport

Alumina AL2O3 Substrate Insulating Ceramic Substrate Thermally Conductive Ceramic Sheet


FAQ:

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)

High Temperature Alumina Ceramic Block Ring
